Basic Info

Model No.: 1/2"~48"(Dn15~Dn1200)

Product Description

He Bei GuangHao Pipe Fittings Co .,LTD Specializing in the production of steel pipe and pipe fittings
Main production:Heat Preservation Anticorrosive Pipe，Seamless Pipe，ERW/HFW Steel Pipe，LSAW STEEL PIPE，Spiral Tube，Buttweld Steel Pipe Fittings,Industrial Flanges,Steel Pipes,Buttweld Elbows,Buttwel Tees,Forged fittings,etc.
Welcome to discuss

Forged Fittings/Buttweld Steel Pipe Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc.

7cc7cb2a98231a417f8e28501d1c461a_2014314114443

Product Name	THREAD flange
Standard	ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type	ASTM:Slip on welding flange
Materials	Stainless steel:ASTM/ASMES/A182F304 \| F304L \|F304H \| F316 \| F316L \| F321 \| F321H \| F347 \|31Ti 309S \|310S \| 405 \|409 \|410 \| 410S \| 416 \| 420 \| 430 \| 630 \| 660 \| 254SMO \| 253MA \| 353MA Nickel Alloy: ASTM/ASME S/B366 UNS N08020\| N04400\|N06600\| N06625\| N08800\| N08810\|N08825\| N10276\|N10665\|N10675\|Incoloy 800 \| Incoloy 800H \| Incoloy 800HT \| Incoloy 825 \| Incoloy 901 \| Incoloy 925 \| Incoloy 926, Inconel 600 \| Inconel 601 \| Inconel 625 \| Inconel 706 \| Inconel 718 \| Inconel X-750, Monel 400 \| Monel 401 \| Monel R 405 \| Monel K 500 Copper nickel:The main material is 90/10 Copper Nickel , 70/30 Copper Nickel. Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317LS32750 \| S32760 Hastelloy:HastelloyB \| HastelloyB-2 \| HastelloyB-3 \| HastelloyC-4 \| Hastelloy C-22 \| Hastelloy C-276 \| Hastelloy X \|Hastelloy G \| Hastelloy G3 Nimonic: Nimonic 75 \| Nimonic 80A \| Nimonic 90 Duplex Steel: ASTM A182 F51 \| F53 \| F55, S32101 \| S32205\|S31803 \| S32304 Alloy Steel: ASTM/ASME S/ A182 F11 \| F12 \| F22 \| F5 \| F9 \| F91 Ti alloy:ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5 Carbon steel: A105 A350 A694(F52 F56 F60 F65 F70 F80)
Marking	Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

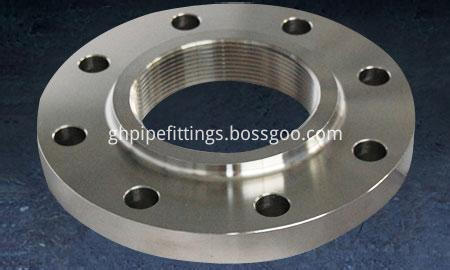

Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.

This type of joint connection is Speedy and simple but not suitable for high presser and temperature applications. Threaded Flanges are mostly used in utility services such as air and water.

Threaded (Screwed) flange is similar to the SO flange, but the bore is threaded. Its chief merit is that it can be assembled withour welding, explaining its use in low pressure services at ordinary atmospheric temperatures, and in highly explosive areas where welding create a hazard.

Screwed Flanges

The various types of threaded flanges are as follows:

Plain Threaded Flanges
Female Threaded Flanges
Male Threaded Flanges

Standards, Dimensions & Weight of Thread Flange Threaded Flanges can be used in very high pressure services and their major advantage is that they can be assembled without welding.

Inconel 600 N06600 Inconel 625thread Flange Astm B564
Jis B2220 Carbon Steel Ss400 Thread Flange 20k
Ansi Jis Din Gost Class300 316 Thread Flange
150lb Rf A105n Carbon Steel B16.5 Thread Flange
Forged Stainless Steel Thread Flange 314 316
Thread Flange Me B16.5 Ansi Class 150
Asme B16.5 Forged Flange Thread Flange

Contact us if you need more details on Thread Flange Me B16.5. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Thread Flange ANSI、Thread Flange Class 150. If these products fail to match your need, please contact us and we would like to provide relevant information.
